Waterco Multiport Valves

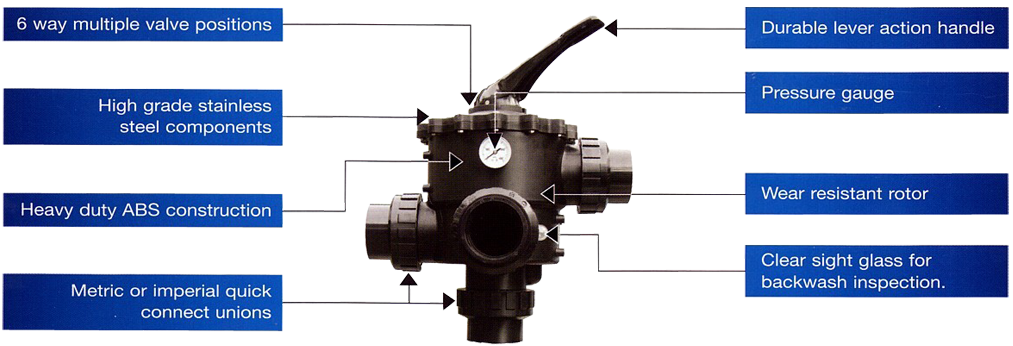

Constructed from heavy duty ABS and GFPP, Waterco Multiport Valves are designed for maximum performance and working pressures.

6-position multiple valve positions
Top and Side Mount configurations
Rated at 400 kPa

Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).

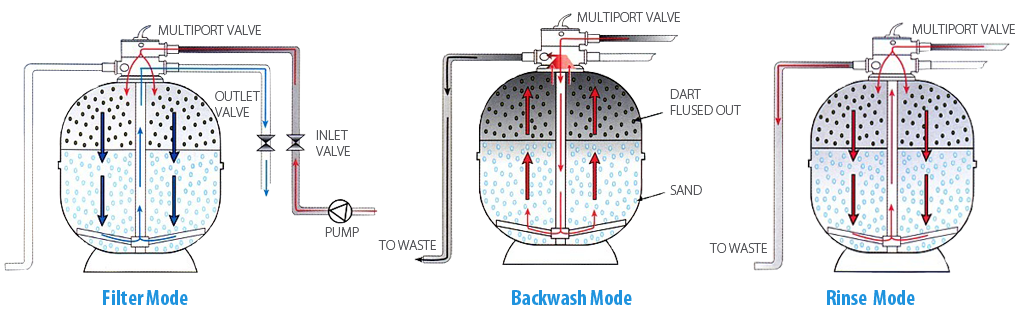

Multiport Valve Main Functions

Filter	: Downward flow through the filter bed to outlet.
Backwash	: Upward flow through the filter bed to waste.
Rinse	: Downward flow through the filter bed to waste.
Waste	: Bypass the filter bed to waste.
Re-circulate	: Bypass the filter bed to outlet.
Closed	: No flow to the filter.

Cleansing a filter simply requires shifting the Multiport lever from the 'filter' position to the 'backwash'ť position, which reverses the flow of water in the filter, flushing the filter bed.
